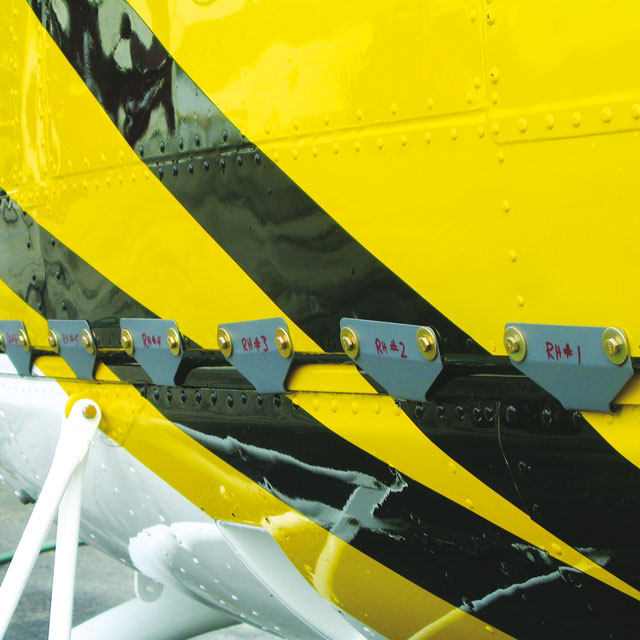

Cabin Door Roller Kit LH Aluminum Door

Part Number: D412-698-011
Aircraft Models: Bell - 205;Bell - 214

Price:
Login to see prices
The Cabin Door Roller Kit allows cabin doors to slide with minimal effort by replacing the existing-loose fitting plastic roller with longer-lasting roller bearings and by replacing the existing lower-door track with a segmented lower friction track on cabin doors. Roller bearings on both the horizontal and vertical axes of the bracket ensure a better supported door that rolls more easily. The Cabin Door Roller Kit also increases the life of the tracking system; longe... Read more
The Cabin Door Roller Kit allows cabin doors to slide with minimal effort by replacing the existing-loose fitting plastic roller with longer-lasting roller bearings and by replacing the existing lower-door track with a segmented lower friction track on cabin doors. Roller bearings on both the horizontal and vertical axes of the bracket ensure a better supported door that rolls more easily. The Cabin Door Roller Kit also increases the life of the tracking system; longer lasting stainless steel rollers with replaceable plastic caps and a segmented lower friction track avoid metal on metal contact. *Includes roller bearing brackets and lower door track. Uses existing hardware. Compatible on Bell p/n 205-032-669-XXX aluminum cabin doors. Not compatible with aircraft equipped with Bell p/n 412-030-300-XXX composite doors or 205-031-669-15 aluminum doors. Price is per side. Read less

Description

The Cabin Door Roller Kit allows cabin doors to slide with minimal effort by replacing the existing-loose fitting plastic roller with longer-lasting roller bearings and by replacing the existing lower-door track with a segmented lower friction track on cabin doors. Roller bearings on both the horizontal and vertical axes of the bracket ensure a better supported door that rolls more easily. The Cabin Door Roller Kit also increases the life of the tracking system; longer lasting stainless steel rollers with replaceable plastic caps and a segmented lower friction track avoid metal on metal contact. *Includes roller bearing brackets and lower door track. Uses existing hardware. Compatible on Bell p/n 205-032-669-XXX aluminum cabin doors. Not compatible with aircraft equipped with Bell p/n 412-030-300-XXX composite doors or 205-031-669-15 aluminum doors. Price is per side.

Key Features

N/A

Key Benefits

  • Easier door installation
  • Less door maintenance
  • Longer life for tracking system
  • New kits now compatible with composite doors

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-625/2019 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP Kit de servicio
STC ANAC - Brazil 2010S10-09 204B/205A/205A1/212/214B/214B1/412/412EP Door Modification Kits
STC EASA - Europe EASA.IM.R.S.00709 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Door Modification Kits
STC TCCA - Canada SH92-43 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP Door Modification Kits
STC FAA - USA SR01446NY 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Door Modification Kits
STC CAAC - China VSTC0680 412EP Serviceability Kit

OEM Cross References

OEM Replacement / 205-031-433-005
OEM Replacement / 205-031-433-006
OEM Replacement / 205-031-435-001
OEM Replacement / 205-032-669-125
OEM Replacement / 412-030-304-105
OEM Replacement / 412-030-304-106
OEM Replacement / 205-031-436-001

External Warning

N/A

Prerequisite

N/A

Compatible With

Bell p/n 205-032-669-XXX Aluminum Cabin Doors.

Not Compatible With

Bell 412-030-300-XXX Composite Doors

Flight Restrictions

None

Installation Time

8 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.82 lb / 0.37 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
