Description

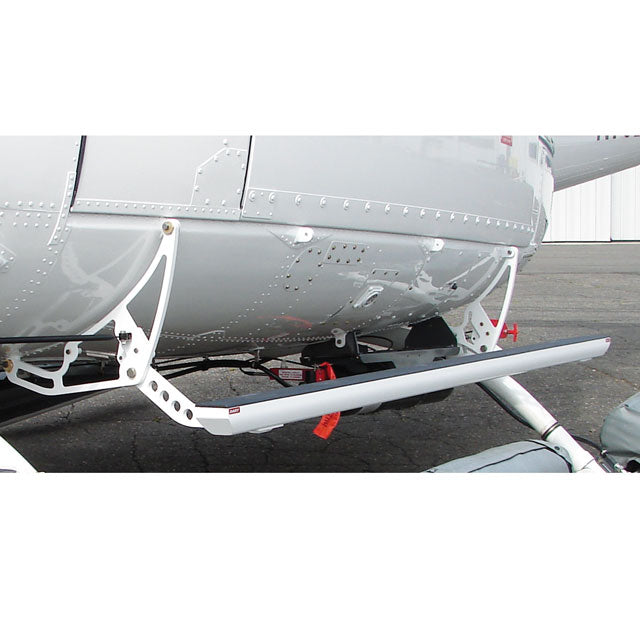

The folding step attaches to 2 sets of existing fuselage hardpoints and assists with splitting the height difference between the aircraft floor and the ground. Step folds out of the way upon float inflation. They are compatible with winch/hoist, rappel and fast rope.
*Mounts to fuselage hardpoints at STA 84.29 & STA 155.06. OEM & DART (Apical) Float compatible. Required equipment for the 614.7601 & 614.7602 Apical Tri-Bag flotation systems (redesign of -024). Price is per side.
Key Features
- Attaches to 2 sets of existing fuselage hardpoints
- Non-slip surface
Key Benefits
- Rated for 510 lbs (3 x 170 lb people) personnel load in flight
- Winch/hoist/rappel/fast rope compatible
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - India | 27014/43/2021-AED | 412EP | Installation of steps |
| STC | EASA - Europe | EASA.IM.R.S.01204 | 205A/205A1/205B/212/214B/214B1/412/412EP | Heli-Access-Step™ D412-630 |
| STC | ECAA - Egypt | ECAA/AW/AE/D0001/R0 | 212/412EP | Heli-Access-Step™ D412-630 |
| STC | TCCA - Canada | SH96-69 | 205A/205A1/205B/212/214B/214B1/412/412CF/412EP | Heli-Access-Step™ D412-630 |
| STC | FAA - USA | SR00595NY | 205A/205A1/205B/210 | Heli-Access-Step™ D412-630 |
| STC | FAA - USA | SR00597NY | 214B/214B1 | Heli-Access-Step™ D412-630 |
| STC | FAA - USA | SR00598NY | 212/412/412CF/412EP/AB412/AB412EP | Heli-Access-Step™ D412-630 |
| STC | JCAB - Japan | STC-112-2-TYO | 212/412/412EP | Heli-Access-Step™ D412-630 |
