Description

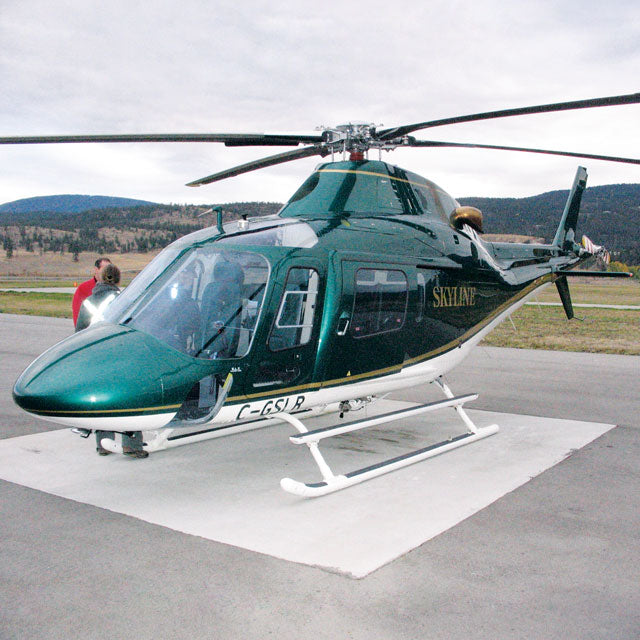

DART Aerospace steps for the AW119 and AW119MKII aircraft feature a secure duplex clamping system that self-locks when weight is applied to prevent slippage down the crosstubes. Steps install easily on the crosstubes and require no modification to the landing gear.
*Compatible with D119-756-041 Heli-Utility-Basket. Not compatible with Dart crosstubes D119-796-XXX. Not compatible with DART (Apical) Floats. Price is per side.
Key Features
- Secure duplex clamping system
- Full length
- Non-slip surface
- Replaces OEM short steps
- Clamps include bearings to prevent over stressing from landing gear displacement
Key Benefits
- Clamps lock on crosstube when weight is applied to prevent slippage down the crosstube
- No modification to the landing gear
- Provides additional security for crew and passengers
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | CAAC - China | VSTC0851 | AW119/AW119MKII | Installation of Heli-Access Steps |
| STC | ANAC - Brazil | 2009S02-06 | AW119/AW119MKII | Heli-Access-Step™ |
| STC | EASA - Europe | EASA.IM.R.S.01458 | AW119/AW119MKII | Heli-Access-Step™ |
| STC | FAA - USA | SR00948SE | AW119/AW119MKII | Heli-Access-Step™ |
| Aircraft Type Certificate | IAC AR - Russia | CT316 | AW119MKII | AW119 Type Certificate |
| STC | TCCA - Canada | LoAC-11-0119/C-11-0120/C-11-0121 | AW109S/AW119/AW119MKII | Bearpaws, Heli-Access-Step™, Cargo Mirror |
